Baseball

L.A. Steelcraft

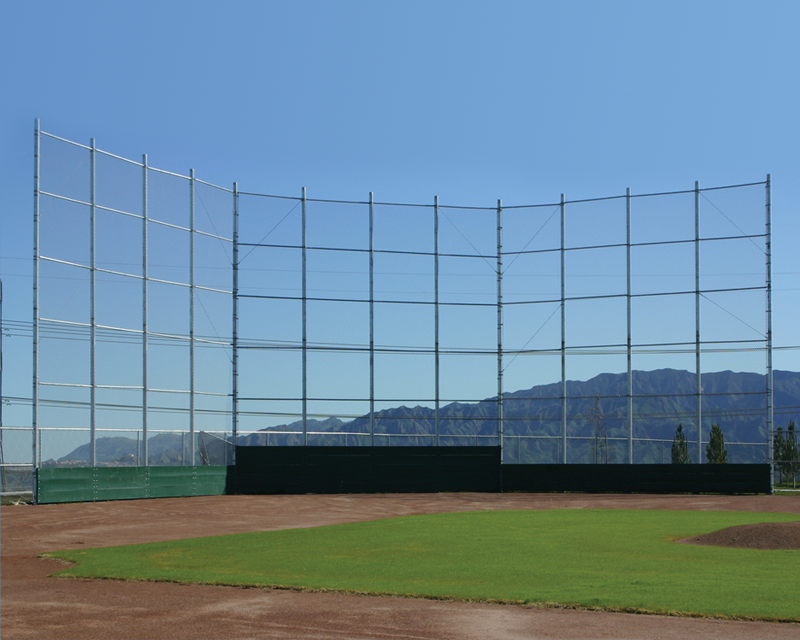

Traditional Backstops

All our Traditional Backstops feature Schedule 40 Galvanized steel pipe, chain link fabric in 2” -9 gauge GBW/K.K. with 5 rear and 3 side-wing planks (ADA planking styles also available). Reinforced with 12 truss-rod wing-panel sections. Strongest in the industry! Heavy duty galvanized steel construction. Custom sizes available. All traditional backstops come with 2” x 12” Douglas Fir Planking.

Also available with powder coated frames and bonded vinyl chain link fabric!

POWDER COAT OPTION AVAILABLE ON POSTS

BS-25aGREAT FOR COLLEGE OR HIGH SCHOOL!

BS-25 other

BS-35 left

BS-35 right

BS-45 left

BS-45 right

ModelsHeightWidth OpeningDepthSched. 40 Vertical PostsHorizontal RailsWing WidthRear Panel WidthFabric Panels/WingsShipping WeightPriceDownload3D Download
BS-2520’58’-3”14’-2”4-1/2” OD1-5/8” OD20’30’2”-9 GA4,650 lbs.$12,915.00Download
BS-3530’68’-3”14’-2”5-9/16” OD1-5/8” OD20’40’2”-9 GA7,950 lbs.$18,813.00Download
BS-4530’96’-7”28’-3”5-9/16” OD1-5/8” OD40’40’2”-9 GA11,900 lbs.$27,045.00Download

NOTE: POST INSTALLATION MAY REQUIRE STEEL REINFORCEMENT IN FOOTING; CHECK WITH LOCAL BUILDING CODES IF REQUIRED IN YOUR AREA.

Arch Backstops


Specified by architects and developers for its classic, graceful form and function, the arch backstop is available in layback or perpendicular styles – extensions available for perpendicular. All L.A. Steelcraft baseball backstops feature 9 ga. and 11 ga. hot dipped galvanized knuckle-knuckle fabric, galvanized pipes, fittings and hardware, for corrosion resistance. No welding necessary. L.A. Steelcraft offers an optional powder coated color system with bonded vinyl coated fabric and polyester coated fittings. Backstops come with installation video, plus written assembly details and footing instructions.

Pipe Dimensions ( All AB Models are schedule 40 galvanized steel pipe)
ArchVertical RibsHorizontal Ribs
2 - 7/8” OD2 - 3/8” OD1 - 1/16” OD

PERPENDICULAR WITH EXTENSION

Extensions provide maximum foul capture and allow additional space behind home plate. Weights & prices include extensions.

ModelExtensionWeightPriceDownload3D Download
AB-62P55’5,375 lbs.$15,347.00Download
AB-62P1010’6,060 lbs.$16,828.00Download
AB-50P55’3,850 lbs.$11,859.00Download
AB-50P1010’5,390 lbs.$16,014.00Download
AB-40P55’3,050 lbs.$10,612.00Download
AB-40P1010’4,150 lbs.$13,416.00Download
AB-30P55’2,450 lbs.$8,989.00Download
AB-30P1010’3,430 lbs.$12,100.00Download

AB-62P10

AB-50P

AB-62P

PERPENDICULAR STYLE

Offers the most control of foul-balls. Available in four sizes, with optional extension.

ModelHeightWidthDepthWeightPriceDownload3D Download
AB-62P20’62’20’4,000 lbs.$11,068.00
Download
AB-50P14’6”50’14’6”2,750 lbs.$7,860.00Download
AB-40P15’6”40’15’6”2,250 lbs.$6,707.00Download
AB-30P15’30’15’1,750 lbs.$6,149.00Download

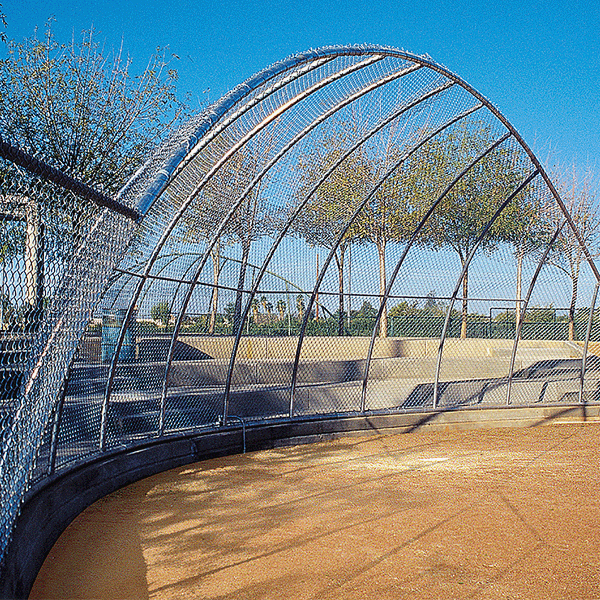

LAYBACK STYLE

The 25º slope allows for more space above home plate and full view of the field for spectators. Available in four models.

ModelHeightWidthDepthWeightPriceDownload3D Download
AB-62L18’62’20’3,500 lbs.$10,329.00Download
AB-50L13’6”50’14’6”2,500 lbs.$7,109.00Download
AB-40L14’40’15’6”2,250 lbs.$6,707.00Download
AB-30L13’6”30’15’1,600 lbs.$5,738.00Download

AB-62L

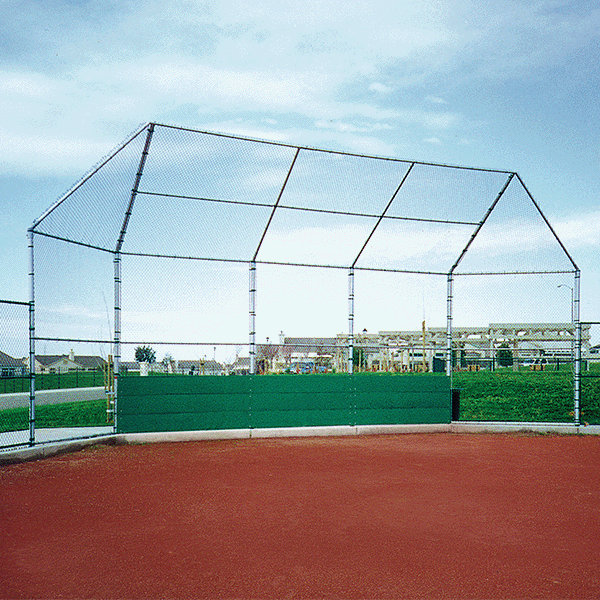

Full Size Permanent Backstops

1035T

Bolt-together design eliminates field welding. All posts and rails are galvanized pipe, hardware is corrosion resistant and fabric is hot dipped galvanized knuckle-knuckle finish.

Custom designed sizes and posts available.

Sold without Planking, see information below on planking options.

Power coated frame, vinyl coated fabric and polyester coated fitting available at additional fee.

POWDER COAT OPTION AVAILABLE ON POSTS

BASEBALL FIELD PACKAGES

These field packages consist of a full size permanent backstop with rear planking (3 boards high), two 12’ fiberglass dugout benches (Model LBF-12C) and two 6’ x 20’ protection fences (Model 620KD). Your choice of backstop – either our 1035T model or the 1235T model.

1235T-2FB

NO WELDING NECESSARY

Model Number1035T-2FB1235T-2FB
Height Opening17’6”19’6”
Width Opening34’34’
Depth7’6”7’6”
Vertical End Posts2 - 7/8”2 - 7/8”
Vertical Posts2 - 7/8”2 - 7/8”
Horizontal Rails1 - 5/8”1 - 5/8”
Rear Panel Width20’20’
Panel Height10’12’
Wing Length10’10’
Hood Supports2 - 3/8”2 - 3/8”
Fabric Panel Gauge2” - 9 GA2” - 9 GA
Fabric Hood Gauge2” - 11 GA2” - 11 GA
Wt. of Complete Pkg.2,160 lbs.2,448 lbs.
Benches- 2 ea.LBF-12CLBF-12C
Protection Fencing620-KD620-KD
Price$8,691.00$9,517.00
DownloadDownloadDownload
3D Download

REAR & WING PLANKING FOR FULL SIZE PERMANENT BACKSTOPS

Rear and wing planks are optional for all full-sized and junior backstops: Hardware and attachment brackets are corrosion resistant and are included. Planks are 2” X 12” Douglas Fir Wood.

WP4

 ModelDescriptionsWeightPriceDownload3D Download
Wing Panels
WP3/ADA3 high both wings258 lbs.$1,306.00
WP44 high both wings344 lbs.$1,646.00
WP55 high both wings430 lbs.$2,199.00
Rear Panels
Series 35TRP3-35T/ADA3 high x 20’258 lbs.$1,306.00
RP4-35T4 high x 20’344 lbs.$1,924.00
RP5-35T5 high x 20’430 lbs.$2,597.00
Series 44TRP3-44T/ADA3 high x 30’387 lbs.$1,646.00
RP4-44T4 high x 30’473 lbs.$2,475.00
Series 54TRP3-54T/ADA3 high x 40’516 lbs.$2,221.00
RP4-54T4 high x 40’602 lbs.$3,027.00
RP5-54T5 high x 40’860 lbs.$3,578.00


All full sized baseball backstops can be modified with heavier posts, call with your specifications.

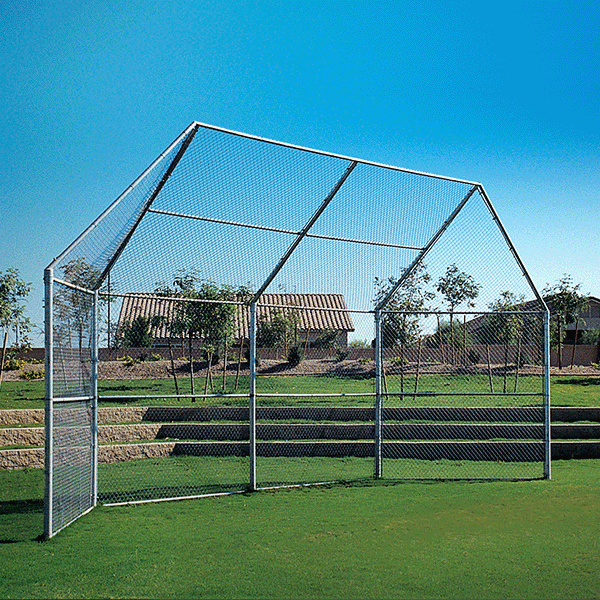

35T SERIES FULL SIZE WITH BACKSTOP35t series backstops1035T WITHOUT PLANKING

Model Number1035T1235T1435T1635T
Height Opening17’ 6”19’ 6”21’ 6”23’ 6”
Width Opening34’34’34’34’
Depth7’ 6”7’ 6”7’ 6”7’ 6”
Vertical End Posts2 - 7/8”2 - 7/8”3 - 1/2”4 - 1/2”
Vertical Posts2 - 7/8”2 - 7/8”3 - 1/2”4 - 1/2”
Horizontal Rails1-5/8”1-5/8”1-5/8”1-5/8”
Rear Panel Width20'20'20'20'
Panel Height10’12’14’16’
Wing Length10’10’10’10’
Hood Supports2 - 3/8”2 - 3/8”2 - 3/8”2 - 3/8”
Fabric Panel Gauge2”-9 GA2”-9 GA2”-9 GA2”-9 GA
Fabric Hood Gauge2”-11 GA2”-11 GA2”-11 GA2”-11 GA
Weight1,2001,4881,7762,064
Price$4,153.00$4,947.00$5,813.00$6,693.00
DownloadDownloadDownloadDownloadDownload
3D Download

44T SERIES FULL SIZE BACKSTOPS

44t series backstop

1044T w/ PLANKS

Planks sold separately.

Model Number1044T1244T1444T1644T
Height Opening16’ 6”19’ 6”21 ’6”23’ 6”
Width Opening44’44’44’44’
Depth7’ 6”7’ 6”7’ 6”7’ 6”
Vertical End Posts2 - 7/8”2 - 7/8”3 - 1/2”4 - 1/2”
Vertical Posts2 - 7/8”2 - 7/8”3 - 1/2”4 - 1/2”
Horizontal Rails1 - 5/8”1 - 5/8”1 - 5/8”1 - 5/8”
Rear Panel Width30’30’30’30’
Panel Height10’12’14’16’
Wing Length10’10’10’10’
Hood Supports2 - 3/8”2 - 3/8”2 - 3/8”2 - 3/8”
Fabric Panel Gauge2”-9 GA2”-9 GA2”-9 GA2”-9 GA
Fabric Hood Gauge2”-11 GA2”-11 GA2”-11 GA2”-11 GA
Weight1,4091,6971,9852,273
Price$5,261.00$6,193.00$7,129.00$8,068.00
DownloadDownloadDownloadDownloadDownload
3D Download

54 T SERIES FULL SIZE BACKSTOPS

54T seies backstop

1054T w/ PLANKS
Planks sold separately.

Model Number1054T1254T1454T1654T
Height Opening17’ 6”19’ 6”21’ 6”23’ 6”
Width Opening54’54’54’54’
Depth7’ 6”7’ 6”7’ 6”7’ 6”
Vertical End Posts2 - 7/8”2 - 7/8”3 - 1/2”4 - 1/2”
Vertical Posts2 - 7/8”2 - 7/8”3 - 1/2”4 - 1/2”
Horizontal Rails1 - 5/8”1 - 5/8”1 - 5/8”1 - 5/8”
Rear Panel Width40’40’40’40’
Panel Height10’12’14’16’
Wing Length10’10’10’10’
Hood Supports2 - 3/8”2 - 3/8”2 - 3/8”2 - 3/8”
Fabric Panel Gauge2”-9 GA2”-9 GA2”-9 GA2”-9 GA
Fabric Hood Gauge2”-11 GA2”-11 GA2”-11 GA2”-11 GA
Weight1,6181,9062,1942,482
Price$7,072.00$8,227.00$9,351.00$10,476.00
DownloadDownloadDownloadDownloadDownload
3D Download

NOTE: POST INSTALLATION MAY REQUIRE STEEL REINFORCEMENT IN FOOTING; CHECK WITH LOCAL BUILDING CODES IF REQUIRED IN YOUR AREA.

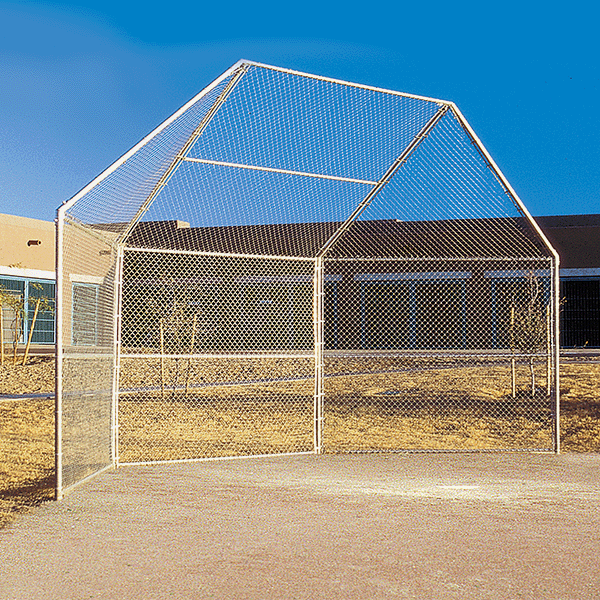

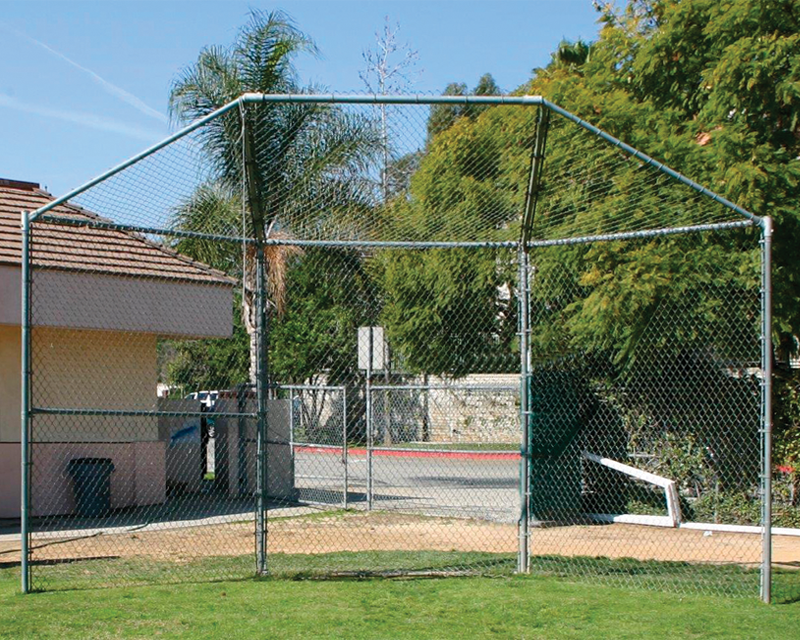

Junior Backstops

JUNIOR SIZED BASEBALL BACKSTOPS

Great for softball or where space is limited. These heavy-duty backstops are available with or without Hoods, in portable or direct bury types. One is permanently installed in concrete footings, the other is freestanding and portable. Backstops are furnished complete with all parts necessary for assembly.
No field welding needed.
The hood corners are pre-fabricated and wired at the factory, on 810 models with hoods.

1024-4c

810 KD

 810J-3S810JH-4S810KD810JH-4C1024KD1024-4C
Height Opening10’13’10’13'10’17’6”
Width Opening20’6”20’6”20’6”20’6”24'24'
Depth6’6’6’6’7'4"7'4"
Vertical Posts2-3/8”2-3/8”2-3/8”2-3/8”2-3/8”2-3/8”
Horizontal Rails1-5/8”1-5/8”1-5/8”1-5/8”1-5/8”1-5/8”
Wing Height10’10’10’10’10’10’
Wing Length8’6”8’6”8’6”8’6”10’10’
Rear Panel Height10’10’10’10’10’10’
Rear Panel Width8’6”8’6”8’6”8’6”10’10’
Top Horizontal Rails1-5/8”1-5/8”1-5/8”1-5/8”1-7/8”1-7/8”
Hood SupportNo Hood1-7/8”No Hood1-7/8”No Hood2-3/8"
Fabric Panels/Wings2”-9 GA2”-9 GA2”-9 GA2”-9 GA2”-9 GA2”-9 GA
Fabric HoodNo Hood2”-11 GANo Hood2”-11 GANo Hood2”-11 GA
Weight680 lbs.1000 lbs.575 lbs.855 lbs.575 lbs.1115 lbs.
Price$2,393.00$3,737.00$1,602.00$2,751.00$1,889.00$4,161.00
DownloadDownloadDownloadDownloadDownloadDownloadDownload
3D Download
Model 1024-4C requires corner fabrication, similar to Full Size Backstops.

WHEEL ASSEMBLY

Wheel AssemblyOur 810J-3S and 810JH-4S can be fitted with wheels for easy adjustments and movement. The wheel assembly slips easily onto the front uprights and the pneumatic tires roll across grass with minimum impact The backstop’s bottom frame is extended to provide a place for a hand transporter or manual move.
For backstop anchors and transporter see page ?
We suggest ordering with Portable Backstop.

ModelWeightPriceDownload3D Download
BB-WA30 lbs.$547.00Download

810JH-4S

Baseball Racks

BATTING HELMET RACK

BATTING HELMET RACKDugout space saving Helmet Rack
is made of 2” x 2” square structural steel upright with 12 each formed 3/8” hot rolled steel helmet holders, welded to upright and hot dipped galvanized finish. Approx. 72” high x 18” wide x 12” deep.
SM=Surface Mount model.

BATTING HELMET RACK CLOSEUP

ModelDescriptionWeightPriceDownload3D Download
BHT-1218” W x 72” H25 lbs.$271.00
BHT-12-SM18” W x 72” H30 lbs.$288.00

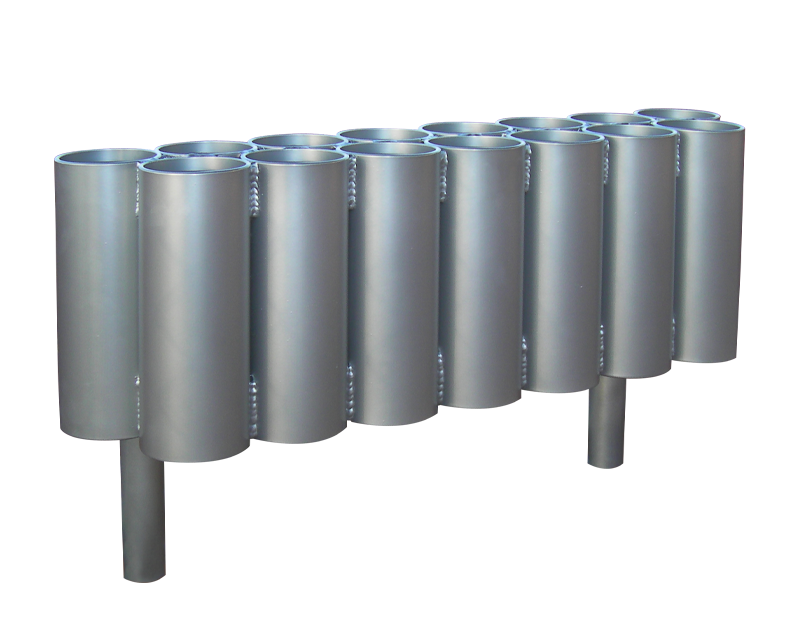

BAT RACKS

Powder coat option available on posts.

BR8-SMAll galvanized steel welded unit with cold galvanizing compound treated welds. Aprox. 20” high by 6” deep. Powder coating available at additional cost. SM = Surface Mount model.

ModelDescriptionWeightPriceDownload3D Download
BR-15Galv. holds 15140 lbs.$800.00Download
BR-8Galv. holds 875 lbs.$447.00Download
BR-15SMGalv. holds 15140 lbs.$800.00Download
BR-8SMGalv. holds 875 lbs.$447.00Download

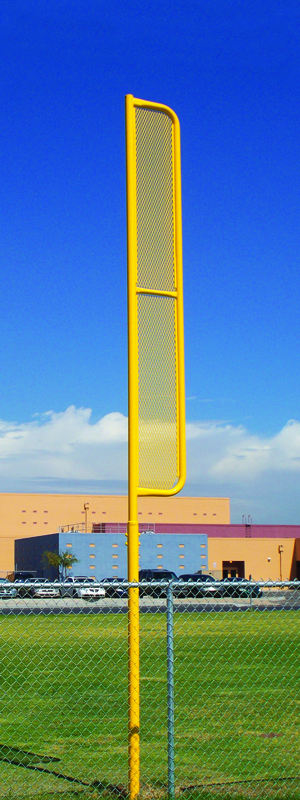

Baseline Foul/Fair Poles

FLP-20 & 30

SLEEK CONTINUOUS LOOK.
A steel foul line pole available in three heights, with frames of 1” tubing and wing panels filled with 3/4”-9 gauge expanded metal. The entire unit is sandblasted then electrostatically powder coated yellow. Exclusive continuous outside diameter, non-stepped pole.
Can be installed In Ground, or Surface Mounted (see models below ending with SM). SOLD IN PAIRS.
FLP model Foul Poles bottom starts 8 ft. above grade. All measurements are “above grade”. CUSTOM DESIGNED FOUL POLES AVAILABLE WITH OR WITHOUT WINGS.

ModelPipe Diam.HeightWeightPriceDownload3D Download
FLP-204-1/2” OD20'580 lbs.$3,756.00Download
FLP-305-9/16” OD30'1,282 lbs.$4,260.00Download
FLP-406-5/8” OD40'1,880 lbs.$6,613.00Download
FLP-20SM4-1/2” OD20'494 lbs.$4,586.00Download
FLP-30SM5-9/16” OD30'1,078 lbs.$4,747.00Download
FLP-40SM6-5/8” OD40'1,852 lbs.$7,371.00Download

FLP Base

Surface mount for foul poles shown left

Protective Fencing

SIDELINE FENCING

ModelSizeWeightPriceDownload3D Download
610KD6’ high x 10’ long280 lbs.$1,145.00Download
620KD6’ high x 20’ long560 lbs.$2,158.00Download
1010KD10’ high x 10’ long385 lbs.$1,562.00Download
1020KD10’ high x 20’ long665 lbs.$2,398.00Download

Sideline Fencing extends the protected area of any backstop and provides an ideal enclosure for small dugouts. Fencing is 2”-9GA, HDG, Knuckle-Knuckle fabric on 2-3/8” uprights and 1- 5/8” vertical posts.
Sold in Pairs.

610KD610KD cornerAll L.A. Steelcraft fencing is knuckle to knuckle.

PORTABLE FENCING & PROTECTION

 ModelSizeWeightPriceDownload3D Download
PORTABLE FENCING
OP41010’ x 4’100 lbs.$520.00Download
PITCHER PROTECTION SCREENS
PPS-M6’ x 7’70 lbs.$741.00Download
PPS-N6’ x 7’55 lbs.$679.00Download
FIELD/BASEMAN’S SCREEN
FPS-M6’ x 7’65 lbs.$636.00Download
FPS-N6’ x 7’50 lbs.$574.00Download

Galvanized steel pipe, 2” mesh 11 gauge H.D.G. = (M) or 2” Knotted Latex Netting = (N).

PPS

FPS

OP410

Baseball Netting

BACKSTOP BASEBALL NETTING

We are proud to provide quality baseball and softball netting, canopy netting and dugout netting used for professional, collegiate, municipal and local stadiums. Our protective netting is manufactured using polyester, which is stronger, more abrasion resistant and UV-resistant than nylon netting.  Polyester netting is an ideal material for outdoor use and provides long lasting performance. We manufacture 5 different knotted netting sizes (thicknesses) in our standard 1- 3/4” mesh, ranging from light duty to heavy duty netting. Framing and hardware is also available.  We offer custom sizes and configurations to fit your field and facility.  We also offer installations of cable suspended backstops systems to ensure maximum protection for your ball field.  Our baseball netting is manufactured in the USA and offers a low cost, high quality product for your facility.  Call us and we can help you with designing, manufacturing and installation of any special baseball project that you want to complete.

Baseball Backstop Netting 1

Baseball Backstop Netting 3

Baseball Backstop Netting 2

Baseball Backstop Netting 4

PROTECTIVE BARRIER NETTING

Often sports fields are situated close to locations such as parking lots, roadways and housing where ball containment is desirable and also necessary for safety.
Our barrier netting (available for all sports and various sizes) can help provide spectator safety, personnel, property and injury protection at a cost effective solution for all type of sporting and recreational areas.
Our custom barriers nets are built with top quality materials in the USA and can be crafted with accessories including posts and hardware. We can also offer installation services. Please contact us with your requirements.

Boundary Netting

Dugout Seating

All WeatherAluminum planking end caps used for seat benches are 2” x 12” (9-1/2” x 1-3/4” ) extruded aluminum alloy 6063T6 with a clear anodized finish as per AA-M10L22A31 Class II (204R1) 0.4 mil minimum thickness to resist corrosion and stains. The aluminum planks weighs 1.98 pounds per foot and come with end caps.

PLANK PLAYER/LOCKER ROOM BENCH

LBA-8P

Perfect for dugouts, locker rooms or sidelines. Surface Mount or In Ground install available. All Galvanized Frames. Add SM to model number for surface mount option.

ModelDescriptionLengthFramesSpaceWeightPriceDownload3D Download
LBA-8PAluminum7-1/2’21’ x 7-1/2’33 lbs.$339.00Download
LBA-15PAluminum15'31’ x 15’66 lbs.$607.00Download
LBW-6PWood6'21’ x 6’39 lbs.$259.00Download
LBW-8PWood8'21’ x 8’46 lbs.$330.00Download
LBW-15PWood15'41’ x 15’89 lbs.$531.00Download
LB-FPGalvanized Frame only w/ plate per pair18 lbs.$102.00Download
LB-FCGalv. Frame only for direct bury per pair8 lbs.$87.00Download

PBA-8P

PLAYER BENCH WITH BACKrecycled

Perfect for dugouts, locker rooms or sidelines. Portable or direct bury install. All Galvanized Frames. 2” X 10” seat and back rest plank size.

ModelDescriptionLengthFramesSpaceWeightPriceDownload3D Download
PBA-8PAluminum7-1/2’22’ x 7-1/2’77 lbs.$598.00Download
PBA-15PAluminum15'42’ x 15’148 lbs.$1,118.00Download
PBW-6PWood6'22’ x 6’89 lbs.$474.00Download
PBW-8PWood8'22’ x 8’103 lbs.$549.00Download
PBW-15PWood1542’ x 15’193 lbs.$981.00Download
PB-FSGalvanized Direct Bury Frame per pair45 lbs.$20.00Download
PB-FPGalvanized Portable Frame per pair47 lbs.$231.00Download

PBA-15RS

PLAYERS BENCH WITH REAR SHELF

Dugout bench with space for gloves, caps, batting helmets, water bottles and gloves. Can also be used as additional seating.
Powder coated steel frame with 2” x 12” anodized aluminum seat plank and 2” x 10” backrest with plastic roto-molded end caps.

ModelSeatsLengthWeightPriceDownload3D Download
PBA-8RS57’- 6”125 lbs.$728.00Download
PBA-15RS1015'240 lbs.$1,384.00Download
PBA-21RS1421'315 lbs.$1,800.00Download
PBA-24RS1624'345 lbs.$2,107.00Download
PBA-27RS1827'405 lbs.$2,380.00Download
PBA-30RS2030'450 lbs.$2,872.00Download

Bases & Accessories

All Play Home Plate 300-ASAll Play Home Plate 300-AS
No-Corner bevels extend into apron. Molded 5/16” vinyl is ready to install.
One piece white vinyl covers wood filled core, 3” high.

ModelWeightPriceDownload3D Download
300-AS20 lbs.$136.00Download

Major League Base 100ML Set of 3Major League Base 100ML Set of 3
15” x 15” x 3” Finest quality vinyl covered bonded polyurethane padding. Strapless base easily bolts to anchor plate. Uses 205-BA anchors.

ModelWeightPriceDownload3D Download
100ML22 lbs.$202.00Download

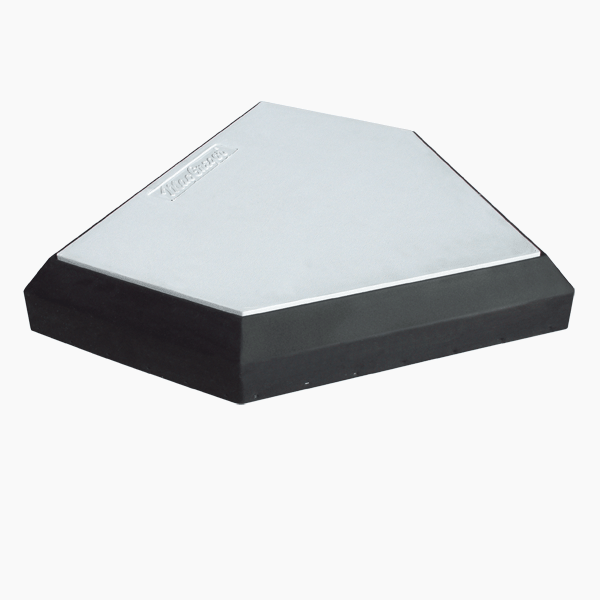

Stake Down Home Plate 310-SHP
White Top with Black beveled edges and 227-FAS ground anchor. Stanchion and mounting plate are powder coated for longer life.

ModelWeightPriceDownload3D Download
310-SHP21 lbs.$148.00Download

Base Anchor 205-BA Set of 3Base Anchor 205-BA Set of 3
Set of 3 anchor stakes, 3 anchor plates. Anchors for use with 100ML bases.

ModelWeightPriceDownload3D Download
205-BA6 lbs.$69.00Download

Economy Home Plate 380-HPEconomy Home Plate 380-HP
Regulation size with white rope and black beveled edges. 3/4” Molded in bottom receive 5 zinc plated 4” spikes.

ModelWeightPriceDownload3D Download
380-HP12 lbs.$38.00Download

Major League Base 175 MLB Set of 3Major League Base 175 MLB Set of 3
15” x 15” x 3” One piece, textured white rubber base for all skill levels. Modular heavy gauge non-collapsible, non-impact. Aluminum stanchion fits male and female ground anchors.

ModelWeightPriceDownload3D Download
175-MLB42 lbs.$405.00Download

Stake Plug - Set of 3 230-SPPlug – Set of 3 230-SP
1” Plug with domed cap should be used when bases are removed. Durable plastic fits snugly to keep elements out.

ModelWeightPriceDownload3D Download
230-SP3 lbs. per set$23.00Download

Double First Base 110DBLDouble First Base 110-DBL
Regulation size: 15” x 30” x 15”. One piece all rubber construction. Modular heavy gauge non-collapsible textured white rubber. Aluminum stanchion fits a male or female ground anchor.

ModelWeightPriceDownload3D Download
110-DBL26 lbs.$289.00Download

Economy Pitcher’s Mound 90CCEconomy Pitcher’s Mound 490-CC
Regulation size 6” x 24” and made of white 3/4” rubber with 3 metal spikes.

ModelWeightPriceDownload3D Download
490-CC8 lb.s$23.000Download

Dig Out Tool 505Dig Out Tool 505
Removes excess dirt in and around ground anchor.

ModelWeightPriceDownload3D Download
5052 lbs.$14.00Download

Base Anchor 227-FAS (female)Base Anchor 227-FAS (female) Set of 3
For use with 175MLB bases.

Base Anchor 225-BAS (male) Set of 3

ModelWeightPriceDownload3D Download
227-FAS3 lbs.$40.00Download
225-BAS3 lbs.$40.00Download

Four-Way-Last -Long Pitcher PlateFour-Way -Last- Long Pitcher Plate 450-C1
Regulation 6” x 24” poly vinyl with PVC. Rotate sides for extended use.

ModelWeightPriceDownload3D Download
450-C118 lbs.$116.00Download

Firm Grip Pitcher Plate 410-FGFirm Grip Pitcher Plate 410-FG
Made of tough vinyl, easy to install, limits depth of holes in front of plate. Regulation 6” x 24” with wood block filled core.

ModelWeightPriceDownload3D Download
410-FG18 lbs.$92.00Download

Baseball Plate Warning

MAJOR LEAGUE MAGNETIC BASES SAFE -T

MAJOR LEAGUE MAGNETIC BASES SAFE -T
Adjustable Plates and Stanchion

Adjustable Plates and Stanchion

Set of 3 regulation size 15” x 15” x 3”
3 magnetic adjustable plates adjust hold for all ages and skill levels. Durable one piece all rubber base cover modular heavy gauge non-collapsible textured white rubber. Universal stanchion pan for excellent durability.
Fits 227-FAS. and 225-BAS ground anchors (sold separately).

ModelWeightPriceDownload3D Download
SAFE-T75 lbs.$1,382.00

Back

Back

Magnetic Plate

Magnetic Plate

Back

Back

ECONOMY RELEASE BASE 6185 - EBA

ECONOMY RELEASE BASE 6185 – EBA
Set of 3 regulation size 15” x 15” x 3”
3 magnetic adjustable plates adjust hold for all ages and skill levels. Durable one piece all rubber base cover. Universal stanchion pan for excellent durability.
Fits 227 – FAS and 225 – BAS ground anchors (sold separately).

ModelWeightPriceDownload3D Download
6185-EBA45 lbs.$406.00

Back

Back

Back

Back

Universal Modular Base Stanchion

Universal Modular Base Stanchion

SAFETY BASE 150 -SB

SAFETY BASE 150 -SB
Set of 3 regulation size 15” x 15” x 2 1/2: slide-over safety base for all skill levels. Modular one-piece all rubber construction with tapered sides. Heavy-duty non-collapsible textured white rubber. Universal stanchion pan for excellent durability. Fits 227 – FAS and 225 – BAS ground anchors (sold separately).

ModelWeightPriceDownload3D Download
150-SB26 lbs.$378.00

SAFETY BASE 150 -SB base

PRO-STYLE BASE SET WITH METAL PAN 120 -PRO

PRO-STYLE BASE SET WITH METAL PAN 120 -PRO

Set of 3 regulation size 15” x 15” x 3”
Durable rubber base cover. Universal stanchion pan for excellent durability. Fits 227 – FAS and 225 – BAS ground anchors (sold separately).

ModelWeightPriceDownload3D Download
120-PRO35 lbs.$220.00

PITCHERS PLATE ANCHOR TOP PLATE 490-PAT

PITCHERS PLATE ANCHOR TOP PLATE 490-PAT
(FOR REMOVABLE PITCHERS PLATE)

Bolts to 490 – CC (sold separately), fits into: 490 – GAS (sold separately). Simply allows you to remove pitchers plate after games or practice, perfect for multi-use fields. Attachment hardware included.

ModelWeightPriceDownload3D Download
490-PAT10 lbs.$84.00

DOUBLE GROUND ANCHOR STAKE 490 -GAS

DOUBLE GROUND ANCHOR STAKE 490 -GAS

Secures removable pitchers plate or double first bases with ground anchor system. This new anchor system can be installed quickly and easily.

ModelWeightPriceDownload3D Download
490-GAS10 lbs.$82.00

FIELD DRAG MATS 330 - FD

FIELD DRAG MATS 330 – FD

Regular field drag 2’ x 6’
13 ga. x 1” x 1” mesh strip crimped steel.
Nylon rope attachment with wood handle for easy pulling.

ModelSizeWeightPriceDownload3D Download
330-FD24" x 72"25 lbs.$312.00Download

FIELD DRAG MATS 220 - FD

FIELD DRAG MATS 220 – FD

Large field drag, as above 6’ x 6’

ModelSizeWeightPriceDownload3D Download
220-FD72" x 72"65 lbs.$590.00Download
