Basketball

L.A. Steelcraft

Straight Post Basketball Combinations

Choose your post size: 3-1/2”OD, 4-1/2”OD, 5-9/16”OD and 6-5/8”OD. Not all post sizes are available with each model. All Straight Posts and Extensions are schedule 40 galvanized steel pipe, neatly capped for weather protection. Extensions are 2-3/8” OD, Brace sets 1.029” OD.

POST INSTALLATION MAY REQUIRE STEEL REINFORCEMENT IN FOOTING CHECK WITH LOCAL BUILDING CODES IF REQUIRED IN YOUR AREA.

12044-11HD600

1244-07-HD600

1244-05-HD600

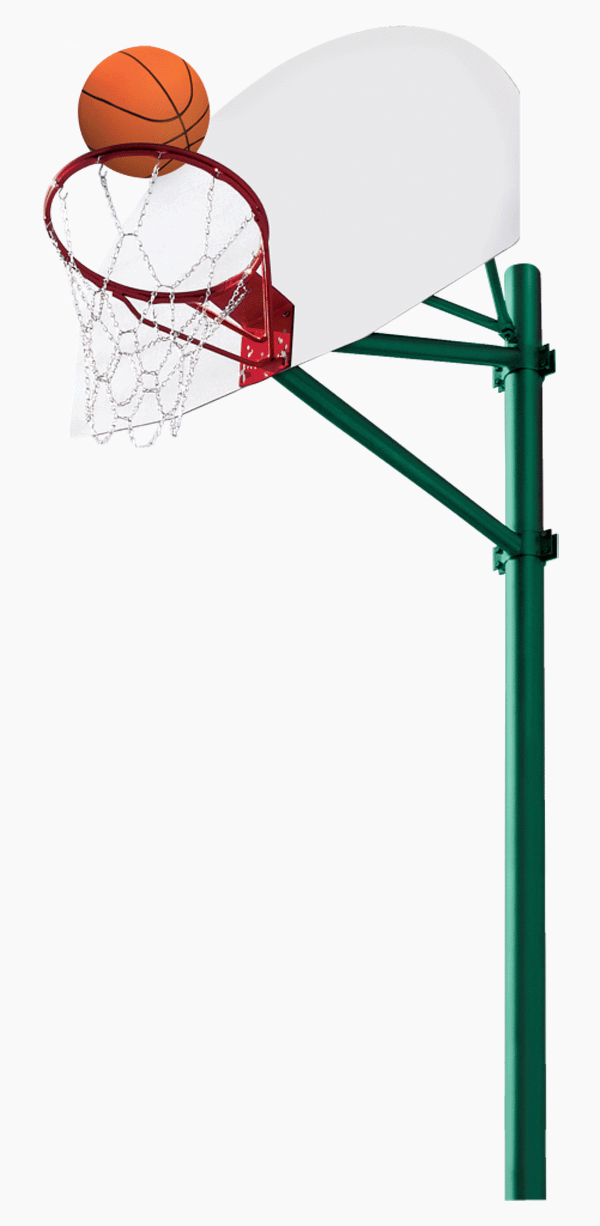

Straight Single Posts

ModelLengthDiameterExtensionWeightPriceDownload3D Download
123315'-6'3-1/2"OD3'165 lbs.$480.00Download
1233PC15'-6'3-1/2"OD3' Powder Coated165 lbs.$869.00Download
124416'4-1/2”OD4'224 lbs.$662.00Download
1244PC16'4-1/2”OD4' Powder Coated224 lbs.$939.00Download
125416'-6"5-9/16”OD4'293 lbs.$766.00Download
1254PC16'-6"5-9/16”OD4' Powder Coated293 lbs.$1,047.00Download
125616'-6"5-9/16”OD6'317 lbs.$800.00Download
1256PC16'-6"5-9/16”OD6' Powder Coated317 lbs.$1,072.00Download
126616'-6"6-5/8”OD6'389 lbs.$991.00Download
1266PC16'-6"6-5/8”OD6' Powder Coated389 lbs.$1,404.00Download

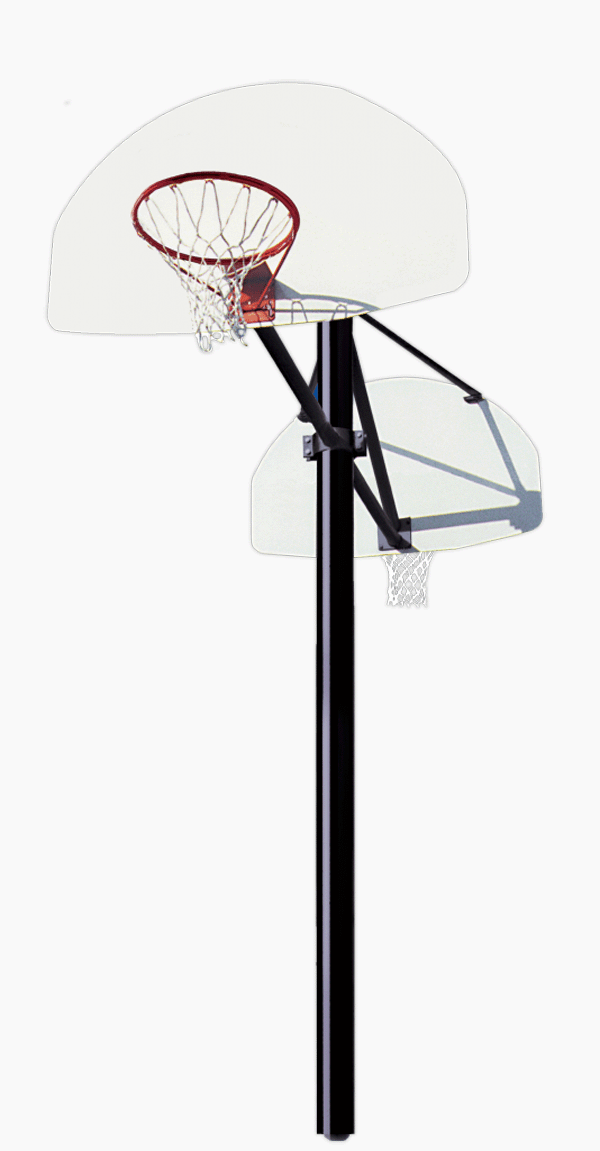

Straight Back to Back Models

ModelLengthDiameterExtensionWeightPriceDownload3D Download
1203315’-6”3-1/2”OD3'209 lbs.$645.00Download
1204416’4-1/2”OD4'276 lbs.$827.00Download
1205416’-6”5-9/16”OD4'351 lbs.$939.00Download
1205616’-6”5-9/16”OD6'392 lbs.$987.00Download
1206616’-6”6-5/8”OD6'465 lbs.$1,289.00Download
12033PC15’-6”3-1/2”OD Powder Coated3'209 lbs.$1,134.00Download
12044PC16’4-1/2”OD Powder Coated4'276 lbs.$1,268.00Download
12054PC16’-6”5-9/16”OD Powder Coated4'351 lbs.$1,296.00Download
12056PC16’-6”5-9/16”OD Powder Coated6'392 lbs.$1,323.00Download
12066PC16’-6”6-5/8”OD Powder Coated6'465 lbs.$1,596.00Download

Curved Post Basketball Combinations

Choose your post size: 3-1/2” OD, 4-1/2” OD, 5-9/16” OD and 6-5/8” OD. All posts are schedule 40 steel pipe. All Curved Posts are galvanized steel pipe with 1.029” OD galvanized braces. Backboard attachment plates are 3/16” x 6” x 6” hot dipped galvanized steel. Not all post sizes are available with each model. Length of curved models allow for setting at official height.

All Back-to-Backs come with an Interlocking double pipe bracket to lock both posts together.

POST INSTALLATION MAY REQUIRE STEEL REINFORCEMENT IN FOOTING CHECK WITH LOCAL BUILDING CODES IF REQUIRED IN YOUR AREA.

12C44-09-600N

12C44-05-HD600

12C044-05-HD600

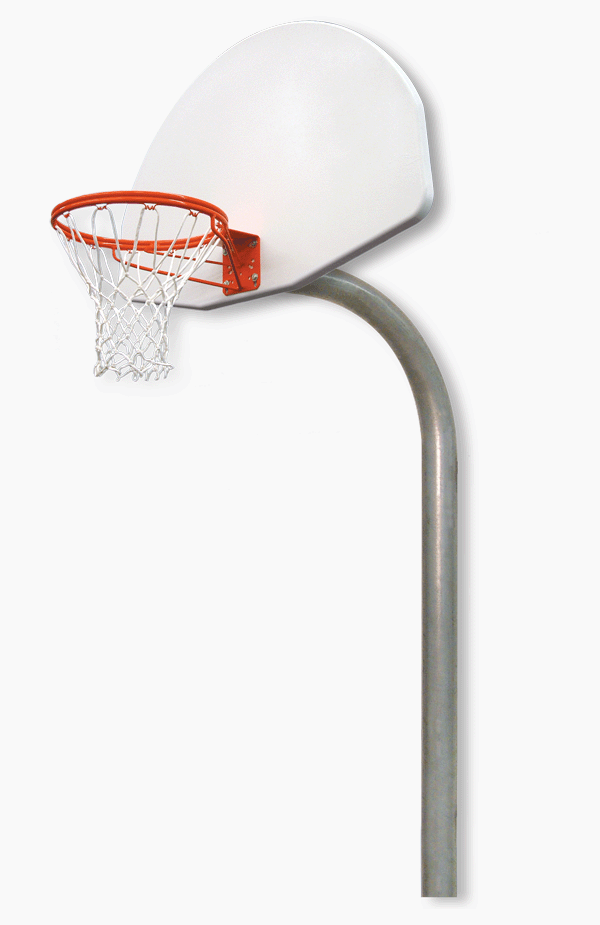

Curved Single Posts

ModelDiameterExtensionWeightPriceDownload3D Download
12C333-1/2”OD3'128 lbs.$407.00Download
12C33PC3-1/2”OD Powder Coated3'128 lbs.$673.00Download
12C343-1/2”OD4'136 lbs.$426.00Download
12C34PC3-1/2”OD Powder Coated4'136 lbs.$683.00Download
12C444-1/2”OD4'194 lbs.$475.00Download
12C44PC4-1/2”OD Powder Coated4'194 lbs.$725.00Download
12C464-1/2”OD6'215 lbs.$526.00Download
12C46PC4-1/2”OD Powder Coated6'215 lbs.$766.00Download
12C545-9/16”OD4'263 lbs.$800.00Download
12C54PC5-9/16”OD Powder Coated4'263 lbs.$1,075.00Download
12C565-9/16”OD6'292 lbs.$877.00Download
12C56PC5-9/16”OD Powder Coated6'292 lbs.$1,097.00Download
12C666-5/8”OD6'379 lbs.$1,099.00Download
12C66PC6-5/8”OD Powder Coated6'379 lbs.$1,411.00Download

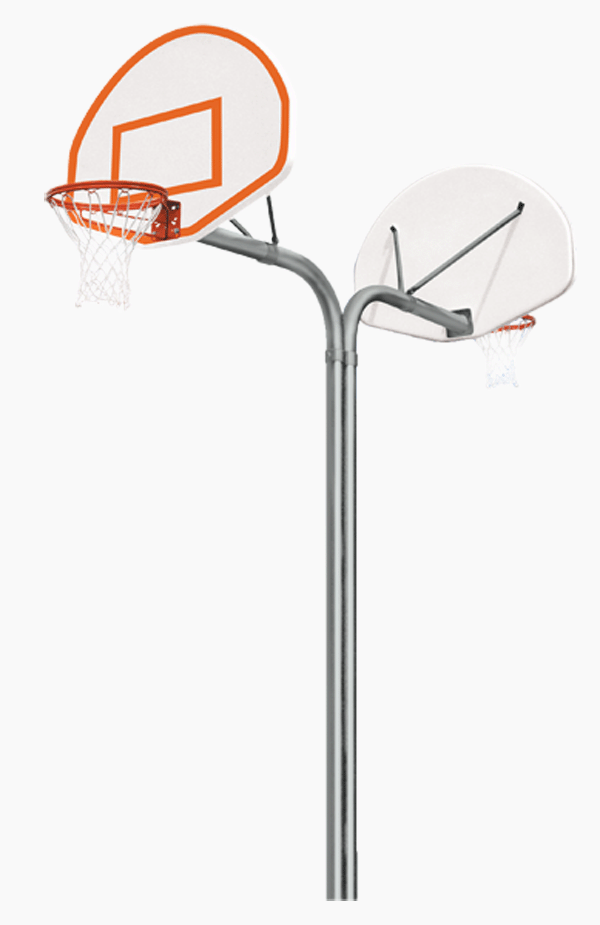

Curved Back to Back Models

ModelDiameterExtensionWeightPriceDownload3D Download
12C0343-1/2”OD4'275 lbs.$862.00Download
12C034PC3-1/2”OD Powder Coated4'275 lbs.$1,375.00Download
12C0444-1/2”OD4'388 lbs.$1,040.00Download
12C044PC4-1/2”OD Powder Coated4'388 lbs.$1,477.00Download
12C0464-1/2”OD6'431 lbs.$1,099.00Download
12C046PC4-1/2”OD Powder Coated6'431 lbs.$1,538.00Download
12C0545-9/16”OD4'526 lbs.$1,563.00Download
12C054PC5-9/16”OD Powder Coated4'526 lbs.$2,068.00Download
12C0565-9/16”OD6'585 lbs.$1,617.00Download
12C056PC5-9/16”OD Powder Coated6'585 lbs.$2,124.00Download
12C0666-5/8”OD6'790 lbs.$2,278.00Download
12C066PC6-5/8”OD Powder Coated6'790 lbs.$2,789.00Download

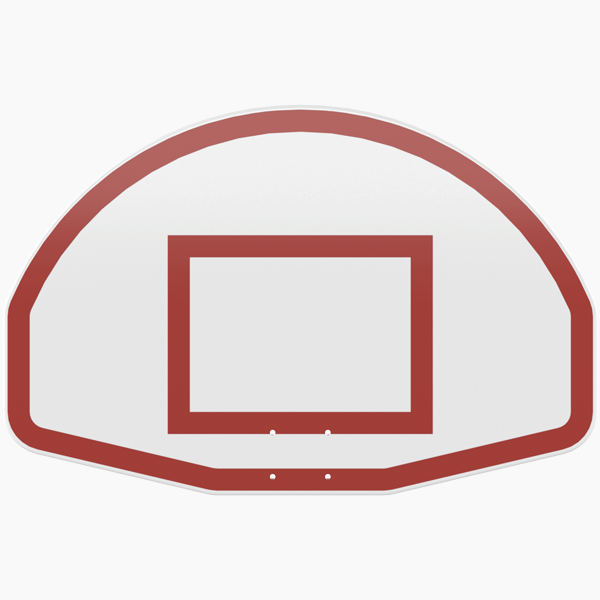

Fan Shaped Backboards

Our backboard hole pattern fits all of our goal rings!

MODEL -01 AND -02 STEEL PLATE

Model -01-

Electrostatic White Powder Coat, as shown. 115 lbs

Model –02-

Hot Dipped Galvanized version. 115 lbs. One piece, solid 1/4” thick millflat steel, A36 steel, roller leveled after plasma cutting, with 2 welded 1” X 2-1/4” brace attachment flanges. Front mount 5” X 5” goal mounting pattern. 54” x 35″

LIFETIME LIMITED WARRANTY

-01 TL

ModelDescriptionWeightPriceDownload3D Download
01Electrostatic White Powder Coat (as shown)115 lbs.$470.00Download
01-A/HSteel Fan Backboard Powder Coated w/Angle120 lbs.$506.00
02Hot Dipped Galvanized Version115 lbs.$564.00Download

-01TL

MODEL – 03 13 GAUGE STEEL

Model -03-

White Powder Coat Fan. 80 lbs. Formed from a single sheet of 13 gauge steel with 1-3/8” flanged edges. Reinforced with 12 gauge and 10 gauge vertical and horizontal channels for vibration-free action and a vertical strongback channel reinforcement that strengthens the critical rim area. Specially designed bolt keeper “keyway” system which allows for easy installation. Front mount 5” x 5” goal mounting pattern. 54” x 36”

LIFETIME LIMITED WARRANTY

-03 TL

ModelDescriptionWeightPriceDownload3D Download
03White Powder Coat 13 Gauge Steel Fan80 lbs.$651.00Download

-03TL

MODEL -04 AND -05 FIBERGLASS

Model -04-

Standard Fiberglass. 61 lbs. Single 3/16” shell over 5/8” striated O.S.B. core. The back is then sprayed over with our special mix of resin and fiberglass to seal unit. 54” x 39”

Model –05-

Deluxe Fiberglass. 64 lbs. Opposing 3/16” sealed shells over resin impregnated 1-1/8” honeycomb core. All goal rim fastening holes are made through custom solid inserts (1-1/8” thick) pre-installed and built into the honeycomb. These backboards are designed for outdoor exposure and will not be affected by moisture.

LIFETIME LIMITED WARRANTY

THE -05 BACKBOARD RESIN IMPREGNATED 1-1/8” HONEYCOMB CORE LASTS A LIFETIME!

-05 TL

-05TL

Layout 1

ModelDescriptionWeightPriceDownload3D Download
04Standard Fiberglass61 lbs.$460.00DownloadDownload
05Deluxe Fiberglass64 lbs.$660.00Download

MODEL -10, -11 AND -11X ALUMINUM

Model –10-

Satin Finish, as shown. 72 lbs. Permanent mold casting guarantees consistent quality. 12 board mounting holes are reinforced with cast in threaded steel inserts. Extra heavy reinforcing ribs. 12 mounting holes allow board to be mounted on many types of systems: Direct mount, retrofit to existing center or dual post systems. 36-1/2” x 54”

Model -11-

Electrostatically Powder Coated White. 72 lbs. Solid one piece cast aluminum with 1-1/2” flanged edges and extraheavy duty ribbing. 12 mounting holes with cast-in threaded inserts accommodate a variety of mounting systems. 54” x 36”.

Model -11X-

Model -11 with Orange Target and Border. 72 lbs.

LIFETIME LIMITED WARRANTY

-10 TL Back TR

-10 TL Front TR

-11X TL

ModelDescriptionWeightPriceDownload3D Download
10Aluminum Fan- Satin Finish72 lbs.$568.00Download
11
Aluminum Fan- Electrostatically powder coated white
72 lbs.$613.00Download
11X
Same as Model 11 with Orange Target and Border
72 lbs.$640.00Download

MODEL – 06 TEMPERED GLASS

Model -06-

Tempered Glass. 125 lbs. Institutional quality glass backboard. These glass boards have NCAA compliant rim-restrainers plus target and borders fire etched into the glass. Maintenance free brushed aluminum frame. 1/2” glass thickness. 5” x 5” goal rim mounting pattern. 54” x 39”

TEN YEAR WARRANTY

NOTE: We do not encourage using fixed rims on glass backboards. We recommend Goal Rim: Collegiate 2K.

-06 TL

ModelDescriptionWeightPriceDownload3D Download
06Tempered Glass- Fan Shape-$1,455.00Download

-06TL

ORANGE TARGETS AND BORDERS

For Fan and Rectangular Boards. Black targets and borders available for international regulations.

Layout 1

OTA/OBM

ModelDescriptionPriceDownload3D Download
OTAOrange Target$52.00Download
OBMOrange Border$93.00Download
OTA/OBMOrange Target and Border$113.00Download
RSSReplacement Shooter's Square$180.00Download

Rectangle Shaped Backboards

Our backboard hole pattern fits all of our goal rings!

MODEL -07 AND -08 STEEL PLATE

Model –07-

Electrostatic White Powder Coat. 275 lbs.

Model -08-

Hot Dipped Galvanized, as shown. 275 lbs.
SPECIAL ORDER ONLY

Made from A-36, 1/4” mill flat steel plate, roller leveled after cutting. 2-1/2” flanged top and bottom edge adds strength and reduces warpage. 48” x 72”

LIFETIME LIMITED WARRANTY

-08 Bl Back BR

ModelDescriptionWeightPriceDownload3D Download
07Steel Plate- Electrostatically White Powder Coated275 lbs.$794.00Download
08
Steel Plate- Hot Dipped Galvanized (as shown)
275 lbs.$889.00Download

-08 BL Front BR

MODEL -09 AND -09X FIBERGLASS

Model -09-

Deluxe Fiberglass (standard size). 90 lbs.
Double 3/16” shell over resin treated honeycomb core. All goal rim fastening holes are made through custom solid inserts (1-18/” thick) pre-installed and built into the honeycomb. All components are bonded together at the same time to form a unitized construction. These backboards are designed for outdoor exposure and will not be affected by moisture. White Gel Coat Finish. 48” x 72”.

Model -09X-

Deluxe Fiberglass Shortboard (NCAA). 90 lbs. NCAA recommended with our exclusive double shell. 42” x 72”

LIFETIME LIMITED WARRANTY

THE -09 BACKBOARD RESIN IMPREGNATED 1 1/8” HONEYCOMB CORE LASTS A LIFETIME!

-09 BL Back BR

-09 BL Front BR

Layout 1

ModelDescriptionWeightPriceDownload3D Download
09Deluxe Fiberglass- Standard Size 48" x 72"90 lbs.$872.00Download
09XDeluxe Fiberglass- NCAA 42" x 72"90 lbs.$795.00Download

MODEL -12P PERFORATED STEEL

Model -12P-

Perforated Steel. 170 lbs. Rugged 11 gauge steel face has 1/4” diameter perforations to provide an open area to minimize wind resistance. Rear support frame allows for multiple mounting conversions. Durable white powder coated finish with a silk screened orange target and border. 5” x 5” goal mounting pattern. Goal ring and net not included. 42” x 72”.

LIFETIME LIMITED WARRANTY

ModelDescriptionWeightPriceDownload3D Download
12PPerforated Steel- Standard Size 42" x 72"170 lbs.$1,152.00Download

MODEL -12 12 GAUGE STEEL

Model -12-

White Powder Coat Rectangle. 147 lbs. Formed from a single sheet of 12 gauge steel with 1-1/2” flanged edges. Lighter weight and less expensive than our Steel Plate Boards. All 4 edges are drawn back to increase strength. Vertical and horizontal reinforcement channels make for a rigid, durable board with reduced vibration and noise. 12 & 10 gauge vertical & horizontal reinforcing channels make a vibrations free unit. 48” x 72”

LIFETIME LIMITED WARRANTY

MODEL -12X 12 GAUGE STEEL – SHORTBOARD

Model -12X-

White Powder Coat Rectangle. 131 lbs. Same as Model -12 but 42” x 72”

TEN YEAR WARRANTY

-12 BL Back BR

ModelDescriptionWeightPriceDownload3D Download
1212 Gauge Steel white Powder Coat175 lbs.$959.00Download
12X12 Gauge Steel white Powder Coat131 lbs.$745.00Download

ORANGE TARGETS AND BORDERS

For Fan and Rectangular Boards. Black targets and borders available for international regulations. Replacement Shooter’s Square for existing backboards. Ready to apply without messy adhesive or paint. Official size. Utilizes H-D self adhesive vinyl used for exterior automotive detailing. Installs in about 5 minutes- instructions and applicator included.

OTA-OBM TR

ModelDescriptionPriceDownload3D Download
OTAOrange Target$52.00Download
OBMOrange Border$93.00Download
OTA/OBMOrange Target and Border$113.00Download
RSSReplacement Shooter's Square$180.00Download

MODEL -13 AND -13X TEMPERED GLASS

Model -13 –

Tempered Glass. 240 lbs. These glass boards have NCAA compliant rim-restrainers plus target and borders fire etched into the glass. Maintenance free brushed aluminum frame. 48” x 72”

Model -13X-

Tempered Glass Shortboard. 210 lbs. Same as Model -13 but 42” x 72”

TEN YEAR WARRANTY

NOTE: We do not encourage using fixed rims on glass backboards. We recommend Goal Rim: Collegiate 2K.

-13 BL

ModelDescriptionWeightPriceDownload3D Download
13Tempered Glass- 48" x 72"240 lbs.$1,511.00Download
13XTempered Glass- 42" x 72"210 lbs.$1,511.00Download

MODEL -BB60A38 – Acrylic

Model – BB60A38 –

These durable clear acrylic backboards are versatile for indoor or outdoor use. 3/8” uv-resistant acrylic permanently attached to a heavy-duty welded steel tubular uni-frame with struts for added support. Designed to allow for direct mounting to gooseneck or straightarm pots. With integral hole to permanently attach board to post and allow for goal replacement without removing the board. 42” x 60” Acrylic Rectangular Backboard 5” x 5” Mounting Hole Spacing 90 lbs.

TWO YEAR WARRANTY

NOTE: We do not encourage using fixed rims on glass backboards. We recommend Goal Rim: Collegiate 2K.

SHOWN WITH OPTIONAL PADDING.

Layout 1

ModelDescriptionWeightPriceDownload3D Download
BB60A3842” x 60” Acrylic Rectangular Backboard 5” x 5” Mounting Hole Spacing90 lbs.$917.00

MODEL -BB72A38 – Acrylic

Model – BB72A38-

42” x 72” Acrylic Rectangular Backboard 5” x 5” Mounting Hole Spacing 111 lbs.

TWO YEAR WARRANTY

NOTE: We do not encourage using fixed rims on glass backboards. We recommend Goal Rim: Collegiate 2K.

SHOWN WITH OPTIONAL PADDING.

Layout 1

ModelDescriptionWeightPriceDownload3D Download
BB72A3842” x 72” Acrylic Rectangular Backboard 5” x 5” Mounting Hole Spacing111 lbs.$1,030.00

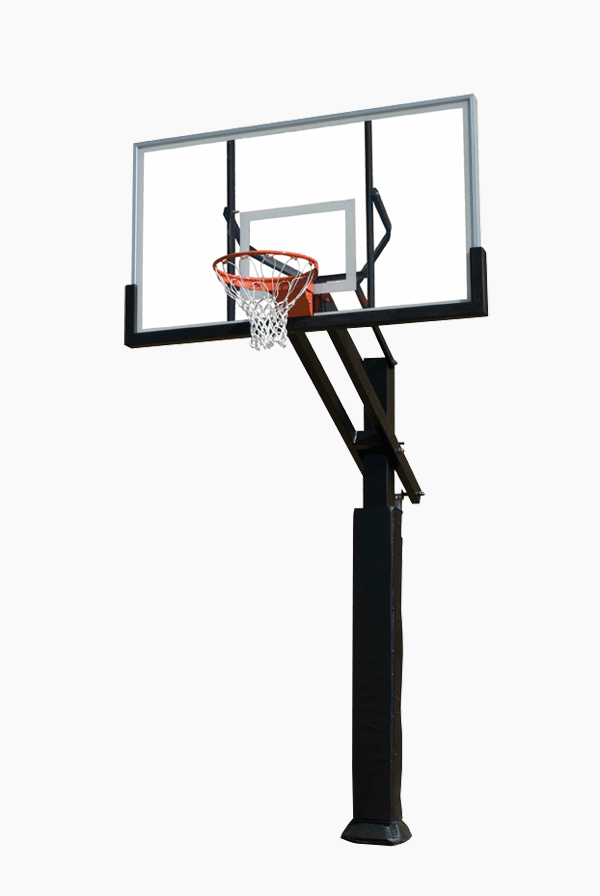

Endurance Playground Basketball System

Developed for hard-hitting, demanding players. Designed after months of rigorous testing by our team of engineers to match those player’s strength and stamina. 6” x 6” x 1/4” thick schedule 40 square steel upright post. Exclusive heavy-duty triangular extension arm (4’, 5’ or 6’ available). Protected by galvanizing the post, extension arm and braces first, then baking on a black powder coat finish for a longer life.

Available with our new model 12X steel backboard with target and border and with our UPGN (Ultimate Playground Goal Rim and Net) or also available with our new acrylic backboards with a breakaway goal rim and net.

LIMITED LIFETIME WARRANTY ON POST, EXTENSION ARM AND BRACING COMPONENTS

SHOWN WITH OPTIONAL PADDING.

backboard_photo-25

MODELS WITH 12X STEEL BACKBOARD and UPGN RIM

GP105S72 – 5’ Extension – 509 LBS.
GP106S72 – 6’ Extension – 519 LBS.

MODELS WITH ACRYLIC BACKBOARDS and BREAKAWAY RIM

GP104A72 – 4’ Extension – 499 LBS.
GP104A60 – 4’ Extension – 447 LBS.
GP105A72 – 5’ Extension – 509 LBS.
GP105A60 – 5’ Extension – 457 LBS.
GP106A72 – 6’ Extension – 519 LBS.
GP106A60 – 6’ Extension – 467 LBS.

Outdoor backboard padding, pricing and information available upon request.

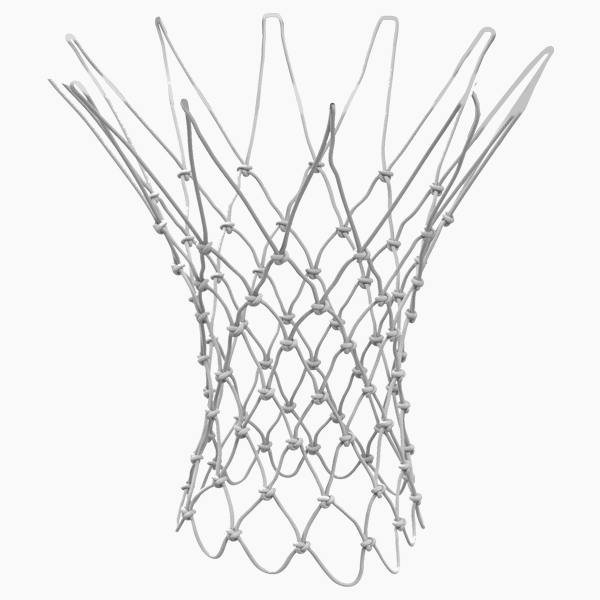

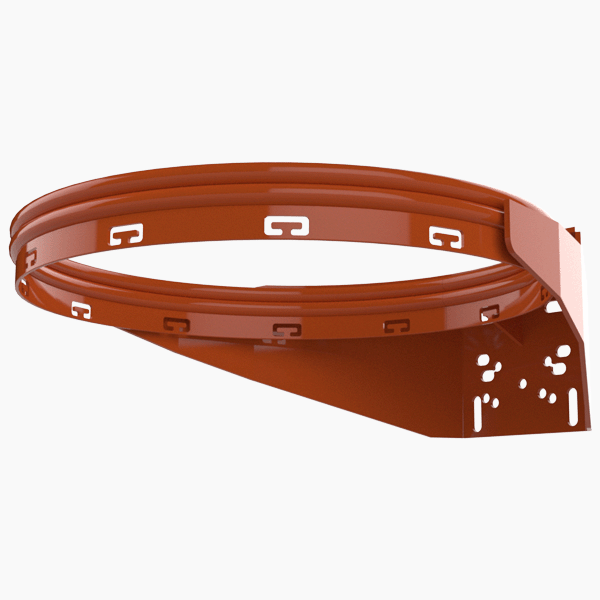

Goal Rims With Nets

All L.A. Steelcraft goal rims are made in the U.S.A. of the finest materials. The range of types shown covers every application and site we’ve seen in 58 years of manufacturing basketball systems. All goal rims include nets.

MODEL HD-600

HD-600High alloy carbon steel 5/8” diam. rim. Consistently true rebounds. Broader bar/rim weld contact, adds durability. 1/2” diam. bracer bars add strength. Goal rim will withstand 800 lbs. before sustaining permanent bend. Universal mounting pattern. Uses nylon net.

ModelWeightPriceDownload3D Download
HD-60018 lbs.$103.00Download

MODEL 600 DOUBLE GOAL RIM

600Two 5/8” cold roll steel rims accommodate “s” hooks for a steel chain net. Double braced for extra rigidity. Chain net is especially designed for use with double-ring goal. Goal rim withstands 800 lbs. Universal mounting pattern.

ModelWeightPriceDownload3D Download
60020 lbs.$133.00Download

MODEL 600-N

600-NThis rugged double goal rim uses two 5/8” cold roll steel rings welded together and double braced with 1/2” and 5/16” Bracer Bars for extra rigidity. Nylon Net slips easily over 12 “net ties”. Goal rim will withstand 800 lbs. before sustaining permanent bend. Universal mounting pattern.

ModelWeightPriceDownload3D Download
600-N20 lbs.$133.00Download

MODEL SD-4 ROUGHNECK GORILLA

SD-4For heavy use courts. Single 5/8” rim with 1/2” alloy steel bracer bars and special “T” ties. Ring will withstand over 1400 lbs. of force before bending. Double ring available. Net ties take over 2000 lbs. of force before breaking. Long lasting baked on powder coat finish. The #1 choice of prisons and extreme high use courts throughout the country. Comes with heavy duty nylon net and zinc mounting hardware.

ModelWeightPriceDownload3D Download
SD-4S (Single)17 lbs.$254.00Download
SD-4D (Double)21 lbs.$277.00Download

LIFETIME LIMITED WARRANTY

MODEL TITAN 775
MODEL TITAN 775-C (with chain net) not shown

TITAN 775Originally designed for New York Park & Rec. Handles static load of 1000 lbs. 2 steel rims 3/4” and 1/2” with a 3/16” wing plate. 5/8” braces and 8” x 7” backplate reinforced with 1-1/2” plate. Powder coated official orange enamel. Comes with nylon net or chain net and mounting hardware.

ModelWeightPriceDownload3D Download
Titan-77525 lbs.$258.00Download
Titan-775C (chain)27 lbs.$261.00Download

LIFETIME WARRANTY

MODEL UPGN

With unconditional lifetime replacement warranty. Double 5/8”, solid rim design.3/16” x 1” “NoFail” net locks add strength and eliminates netlock breakage. 3/16” Thick “Box” design backplate and rim supports. Durable baked-on powder coated finish. Nylon or chain net available
on this model. Add N for nylon, C for chain, or W for webbing to model number when ordering.

ModelWeightPriceDownload3D Download
UPGN27 lbs.$330.00Download
UPGC34 lbs.$339.00Download
UPGW$350.00Download

MODEL COLLEGIATE 2K

COLLEGIATE 2KMost popular break-away on the market. Damper prevents fly-back. Positive lock, continuous no-tie rim. NCAA and high school specifications. Use on backboards with 5” x 5” mounting holes. Nylon Net.

ModelWeightPriceDownload3D Download
Collegiate-2K27 lbs.$378.00http://www.lasteelcraft.com/pdf/COLLEGIATE-2K.pdf

REMOVABLE GOAL RIM BRACKET

removal goal rim bracketGuard against unauthorized use or theft of goal rims. Remove the goal when finished playing. Goal back plate slides tightly into universal adapter plate. Universal hole pattern will bolt to most backboards. Works with most front mount goals with 5” to 7” back plates. Not for use with goals with mechanism housing. Heavy gauge steel with welded flange. Orange powder coated finish. The GSUAP has a quick removal goal adapter.

ModelWeightPriceDownload3D Download
GSUAP6 lbs.$200.00Download

GOAL RIM NETS

Nylon nets are easy to replace and very resilient. Nylon nets come standard with most of our goal rims. See pages 12-13 for all of our goal rim models. Chain net is especially designed for double-rim goals. Our TITAN775 and Model 600 goal rim works well with chain nets. Indoor/Outdoor Zinc coated regulation size 13 gauge steelchain net. Will not stretch, shrink or tangle. Attaches with provided “S” hooks.

GAW

WN

WCN

GAW: The GAW Anti-Whip basketball net is the net of choice for professional play. 120 count nylon hourglass design. Stiffened upper loops help keep net from whipping up.
WN: The WN Nylon Web Playground Basketball Net offers a safer alternative to chain nets for playgrounds. Nylon web design. Fits all 12 loops, not the goals. Won’t rot or decay. Includes “S” hooks for rim attachment.
WCN: Welded steel chain net for double ring goal rims only.

ModelDescriptionWeightPriceDownload3D Download
BCN-12Chain Net1-1/2 lbs.$26.00
BNN-120Nylon Net8 oz.$24.00
GAW120 Count Nylon1 lb.$22.00
WNNylon Web Design3 lbs.$27.00
WCNWelded Steel Chain Net1 lb.$32.00

Basketball Extensions

EXTENSIONS ONLY FOR EXISTING BASKETBALL POST

Extensions are 3’, 4’, or 6’ offset from post. ZE Extensions are for FAN boards and have 2 braces. RZE Extension are for Rectangle boards and have 4 or 5 braces depending on backboard. Curved Posts are one piece and do not require extensions. Wall mount extensions are also available. Wall mount channels are: 5” x 1-3/4” x .190”. Extension pipes are 2-3/8” OD galvanized. Braces are 1” OD galvanized pipe. Extension length measured from front of face plate to facing edge of post.

ZE Series (for fanboards)

ZE-Series (for fanboards)


RZE Series (for rectangle boards)

RZE-Series (for rectangle boards)


WM-Series (for wall mount option)

WM-Series (for wall mount option)

ModelBoard TypeExt. LengthNo. BracesTo Fit Pole Diam.WeightPriceDownload3D Download
ZE-33Fan3'23-1/2”OD44 lbs.$281.00Download
ZE-44Fan4'24-1/2”OD52 lbs.$320.00Download
ZE-45Fan4'25-9/16”OD58 lbs.$372.00Download
ZE-65Fan6'25-9/16”OD74 lbs.$406.00Download
ZE-66Fan6'26-5/8”OD76 lbs.$450.00Download
RZE-44Rectangle4'4/54-1/2”OD66 lbs.$361.00Download
RZE-45Rectangle4'4/55-9/16”OD68 lbs.$424.00Download
RZE-65Rectangle6'4/55-9/16”OD91 lbs.$461.00Download
RZE-66Rectangle6'4/56-5/8”OD93 lbs.$503.00Download

 ModelExtension LengthWeightPriceDownload3D Download
Wall Mount For
Fan Shaped Boards
WMEF11'35 lbs.$614.00Download
WMEF33'50 lbs.$640.00Download
WMEF44'65 lbs.$660.00Download
WMEF66'90 lbs.$708.00Download
Wall Mount For
Rectangular Boards
WMER11'65 lbs.$614.00Download
WMER33'80 lbs.$640.00Download
WMER44'100 lbs.$660.00Download
WMER66'120 lbs.$708.00Download
